cold sheet metal stamping for cold rolled steel

Custom cold sheet metal stamping

Complex custom metal parts and accessories

Cold metal stamping for custom parts

Cold sheet metal stamping is a deformation process performed at room temperature, without the use of heat sources, which allows the production of structural and decorative components with high precision. Cold sheet metal stamping makes it possible to achieve finished products with complex geometries and tight tolerances ideal for a wide range of industrial and construction applications.

This method, particularly suited for serial production, offers high standards of precision and repeatability, and enables the integration of in-line operations such as punching, drilling, or cutting. In this way, components can be delivered ready for assembly or final use, customized according to the client’s specifications, while saving time and production costs.

Materials and sectors

We cold stamp carbon steel, pickled steel, galvanized steel, stainless steel and aluminium, from strip 0.4 to 4 mm thick. We produce brackets, plates, supports, reinforcements and fixing accessories to the customer’s drawing, for:

Our capabilities

Strip thickness

From 0.4 mm to 4 mm

Strip width

Up to 550 mm

Profile length

From 200 mm to 1300 mm

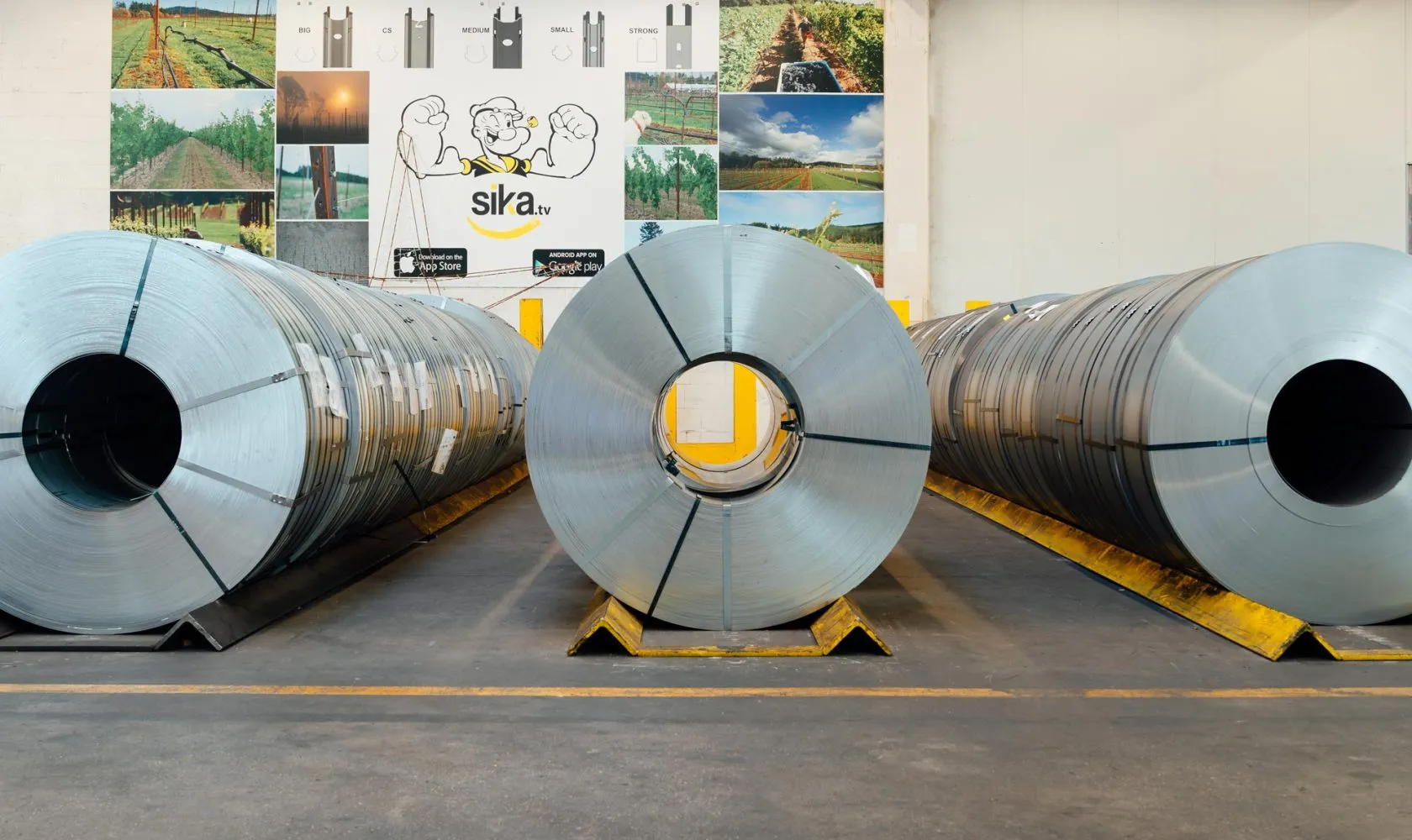

How we work: from coil to stamped part

Cold sheet metal stamping is a process in which metal supplied in coils or sheets is deformed at room temperature using presses and specific dies. The goal is to obtain three-dimensional shapes with high dimensional precision and consistent quality control. Thanks to this method, it is possible to work with various materials and thicknesses, ensuring optimal results both for large-scale production and for custom projects.

Advantages of cold stamping

This method represents a reliable and high-performance technology for the production of high-quality metal components. Cold sheet metal stamping stands out for its high precision, versatility, and ability to preserve the material’s properties, ensuring effective solutions for a wide range of industrial applications.

Stamp with Sika

With Sika, cold sheet metal stamping is integrated with roll forming, punching and welding in the same production cycle: you receive finished parts, ready for assembly.

Request a quote
Sika Profili ISO certification ISO 9001 certified company Sika Profili certified metal profile production company

Frequently asked questions

What is the difference between cold and hot stamping?

Cold stamping is performed at room temperature: it gives higher dimensional accuracy, a better surface finish and no alteration of the material. Hot stamping is used for very deep deformations and large thicknesses.

What sheet thicknesses can you cold stamp?

We work strip from 0.4 to 4 mm thick and up to 550 mm wide, in carbon steel, galvanized steel, stainless steel and aluminium.

Do you offer custom metal stamping services?

Yes. We produce cold stamped parts to the customer’s drawing, from small batches to large orders, with punching and cutting integrated in line.

Other processes

Cold stamping is combined with the other processes of our production cycle: cold roll forming, punching, bending, calendering and welding. One supplier for the complete part.

Cold roll forming of custom metal profiles

Custom cold roll forming

custom metal profile bending for complex curved shapes

Roll bending of metal profiles

Joining and welding of Sika custom-made closed profiles

Joining and welding
